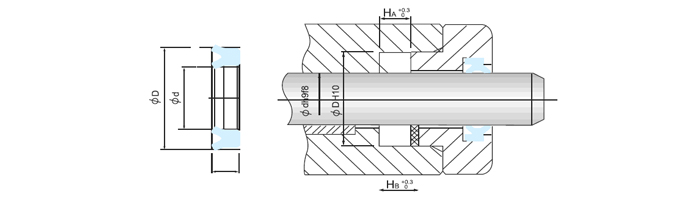

聚氨酯油封結構圖
聚氨酯油封規格尺寸表（UN系列）
| Φd |
ΦD |
h |
Φd |
ΦD |
h |
Φd |
ΦD |
h |
|
4 |
10 |
4 |
5 |
14 |
6 |
6 |
13 |
5 |
|
4 |
11 |
5 |
5 |
14 |
8 |
6 |
13.5 |
5 |
|
4 |
12 |
4 |
5 |
16 |
6 |
6 |
14 |
5 |
|
4.5 |
9.5 |
4 |
5 |
16 |
8 |
6 |
14 |
6 |
|
5 |
11 |
8 |
6 |
12 |
4 |
6 |
15 |
6 |
|
5 |
12 |
5.5 |
6 |
12 |
5 |
6 |
16 |
6 |
|
5 |
12 |
6 |
6 |
12 |
5.5 |
6 |
16 |
8 |
|
5 |
12 |
8 |
6 |
12 |
6 |
6.3 |
16.3 |
8 |
|
5 |
14 |
4.5 |
6 |
12 |
8 |
7.1 |
17.1 |
8 |
|
7.93 |
14.28 |
3.17 |
12 |
22 |
5 |
17 |
25 |
5 |
|
8 |
14 |
4 |
12 |
22 |
7 |
17 |
25 |
5.5 |
|
8 |
14 |
6 |
12 |
22 |
8 |
17 |
25 |
6 |
|
8 |
14 |
8 |
12 |
24 |
6 |
17 |
30 |
6 |
|
8 |
15 |
6 |
12 |
24 |
8 |
17 |
30 |
7 |
|
8 |
15 |
8 |
12 |
25 |
8 |
18 |
22 |
8 |
|
8 |
16 |
4 |
12.5 |
22.5 |
8 |
18 |
24 |
5 |
|
8 |
16 |
5.7 |
14 |
20 |
5 |
18 |
25 |
5 |
|
8 |
16 |
6 |
14 |
20 |
6 |
18 |
26 |
5 |
|
8 |
16 |
8 |
14 |
20 |
8 |
18 |
26 |
8 |
|
8 |
18 |
8 |
14 |
21 |
5 |
18 |
28 |
8 |
|
8 |
22 |
10 |
14 |
22 |
4 |
18 |
30 |
8 |
|
9 |
16 |
6 |
14 |
22 |
5 |
18 |
30 |
10 |
|
9 |
19 |
6 |
14 |
22 |
8 |
18 |
31 |
8 |
|
9 |
19 |
8 |
14 |
24 |
5 |
18 |
32 |
7 |
|
10 |
14 |
4 |
14 |
24 |
8 |
18 |
34 |
8 |
|
10 |
16 |
4 |
14 |
28 |
10 |
18 |
38 |
6 |
|
10 |
16 |
4.5 |
15 |
21 |
4 |
18.5 |
31.74 |
6.35 |
|
10 |
16 |
6 |
15 |
22 |
8 |
19 |
34 |
8 |
|
10 |
18 |
5 |
15 |
23 |
5 |
19.05 |
30.16 |
6.35 |
|
10 |
18 |
5.5 |
15 |
25 |
7 |
19.05 |
33.34 |
7.93 |
|
10 |
18 |
6 |
15 |
25 |
8 |
20 |
26 |
3.3 |
|
10 |
18 |
8 |
15 |
25 |
10 |
20 |
26 |
5 |
|
10 |
20 |
5 |
15 |
27 |
7 |
20 |
26 |
6 |
|
10 |
20 |
6 |
15 |
30 |
8 |
20 |
28 |
4 |
|
10 |
20 |
7 |
15 |
30 |
10 |
20 |
28 |
5 |
|
10 |
20 |
8 |
15.8 |
20 |
3 |
20 |
28 |
5.5 |
|
10 |
22 |
6 |
16 |
22 |
4 |
20 |
28 |
6 |
|
10 |
22 |
8 |
16 |
22 |
5 |
20 |
28 |
7 |
|
11 |
17 |
4 |
16 |
22 |
7 |
20 |
28 |
8 |
|
11.11 |
19.05 |
4.76 |
16 |
22 |
8 |
20 |
30 |
5 |
|
11.2 |
19.2 |
5 |
16 |
24 |
4 |
20 |
30 |
7 |
|
11.2 |
21.2 |
8 |
16 |
24 |
5 |
20 |
30 |
8 |
|
12 |
18 |
4 |
16 |
24 |
8 |
20 |
30 |
10 |
|
12 |
18 |
6 |
16 |
24 |
9 |
20 |
31 |
8 |
|
12 |
18 |
8 |
16 |
26 |
5 |
20 |
32 |
6 |
|
12 |
19 |
5 |
16 |
26 |
7 |
20 |
32 |
8 |
|
12 |
20 |
5 |
16 |
26 |
9 |
20 |
33 |
10 |
|
12 |
20 |
6 |
16 |
28 |
6 |
20 |
34.5 |
12 |
|
12 |
20 |
8 |
16 |
32 |
8 |
20 |
35 |
7 |
